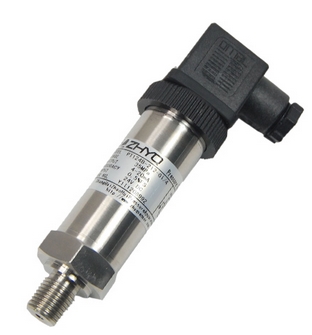

Diffused silicon Pressure Transmitter

Specification

Pressure range : -1bar…0…600bar

Over load : 150%FS

Burst pressure : 300%FS

Output : 4-20mA, 1-5V/0-5V, 0-10V

Power supply : 12~36VDC

Response time : <5ms

Combine error : 0.5% FSO (Including Linearity, Repeatability & Hysteresis)

Repeatability : ≤±0.2%FSO

Long term stability: ≤±0.2%FS/year

Pressure connection: M20×1.5, G1/2, G1/4, 1/2NPT（customer tailor）

Operating temperature : -20℃～80℃

Temperature compensation: 0℃～60℃

Electrical connector : Bendix connector,Hirschman DIN4365 and Gland lead
