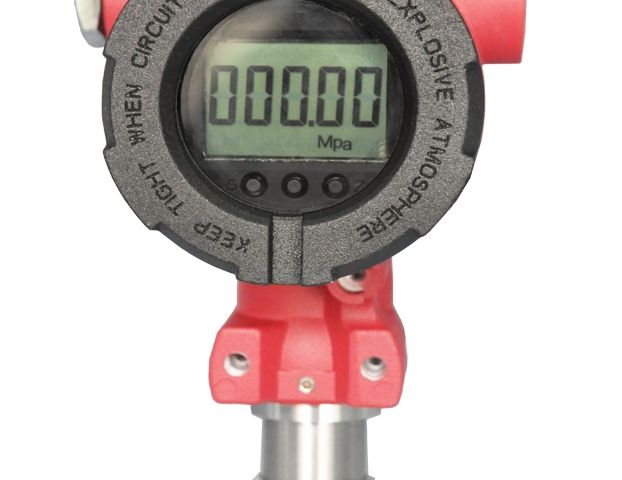

2088 Pressure Transmitter

Specifications

Model : PT124B-2088

Pressure range : 0~50KPa~35MPa

Over load : 150%FS

Burst pressure : 300%FS

Output : 4-20mA, HART

Power supply : 12~36VDC

Response time : <5ms

Combine error : 0.5% FSO(Including Linearity, Repeatability & Hysteresis)

Pressure connection : M20×1.5 , G1/2 , G1/4 , 1/2NPT ( customer tailor )

Operating temperature : -20°C ~ 85°C

Temperature compensation : 0°C ~ 65°C

Electrical connector : Terminal Block

Explosion proof : grade ExiallCT4
