รถกระเช้ายก แบบเตี้ย MINELIFT4

รถกระเช้า ยก ที่มีพื้นที่การทำงานใหญ่ สามารถขับเข้า พื้นที่เล็กๆ ไ้ด้ ยี่ห้อ Putzmeister รุ่น MINELIFT 4
เหมาะสำหรับงานในเหมือง เขื่อน และ งานอุโมงค์ ที่มีพื้นที่ และความสูงที่จำกัด เป็นต้น

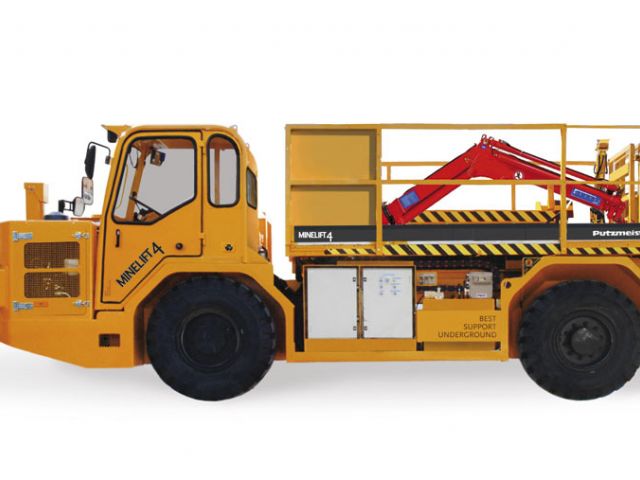

MINELIFT 4

With a lifting height of 4 meters at 4 ton capacity, the scissor liftplatform MINELIFT 4 provides a safe working platform forthe elevation of personnel and cargo. Thanks to the option of incorporating aseries of additional equipment, MINELIFT 4 can be set up for all kinds ofinstallations in underground works, like piping or ventilation. Those optionsinclude an extendable platform, a crane with high load capacity, a pipehandling system and an auxiliary fan lift table.

General Data

Length6820 mm
Width2200 mm
Height2500 mm
Ground clearance317 mm
Distance between axles3350 mm
Inner turning radius2400 mm
Outer turning radius6095 mm
Weight12000 kg


Elevating platform

Max. lifting height4.000 mm
Lifting capacity4.000 kg
Dimensions3.500 x 1.950 mm
Longitudinal tilt+/- 8º
Control panelOn platform and chasis
Preinstallation of air/water distribution
Connection on right side of chasis, service on the platform
Max. operational pressure10 bar


Vehicle

Diesel engine6 cylinders
Maximum power130 kW at 2.200 rpm
CoolingBy water
Engine emissions
In accordance with EU-Stage IIII A / EPA Tier 3
CatalystDCL Int. MINE-X DC8
Fuel tank160 l
Maximum speed20 Km/h
Max. longitudinal gradient while driving30%
Max. transversal gradient while driving10%
Driving and steering
Four-wheel drive and four-wheel steering (4WD / 4WS)
Transmission
Hydrostatic progressive system with continuous variation (ICVD), no gears to change
Service brakes
Multi-disc in oil bath on both axles
Parking brakes (negative)
Internal SAHR discs on both axles
Axles
Heavy-duty directional planetary axles
Tyres Michelín MINE-X / Wheel rims12.00-R20
Rear camera
Night-vision
Automatic centralized greasing system



Driving cabin

Cabin
FOPS/ROPS certified
Glazing
Front (with wipers and water tank ) and right side
Driver seat
Adjustable, mechanical and air suspension, seat belt


Lighting

Working lights on platform
LED, 2 mobile lights
Driving lights
LED, 2 front + 2 rear
Working lights
LED, 4 front + 2 rear
Indicator and position lights
LED, 2 front + 2 rear
Braking lights
LED, 2 rear
Rotative omnidirectional beacon (optional flashing)
Amber


CONFIGURATION FOR PIPE INSTALLATION



Extendable platform (drop wing)

Max. lifting height4.000 mm
Lifting capacity4.000 kg
Additional width700 mm
Max. load on drop-wing200 kg
Dimensions3.500 x 2.650 mm
Longitudinal tilt+/- 8º


Pipe handling system

Max. reach from platform1.820 mm
Max. load capacity per arm300 kg
Pipes4 — 8? (100 — 200 mm)


Crane

Max. lifting capacity / at peak
2.150 kg / 810 kg
Reach3,2 m
Proportional remote control



OPTIONAL EQUIPMENT



FOR INSTALLATION OF VENTILATION

Auxiliary elevating platform

Maximum load capacity2.500 kg
Max. reach from platform1.100 mm
Dimensions1.600 x 700 mm


FOR AUXILLARY SERVICES

Air compressor

Power13 kW
Max. working pressure10 bar
Airflow0,8 — 1,3 m3/min (28 —46 cf/m)
Electricalgenerator

Power5 kW
Tension4 x 230 V + 2 x 400 V
